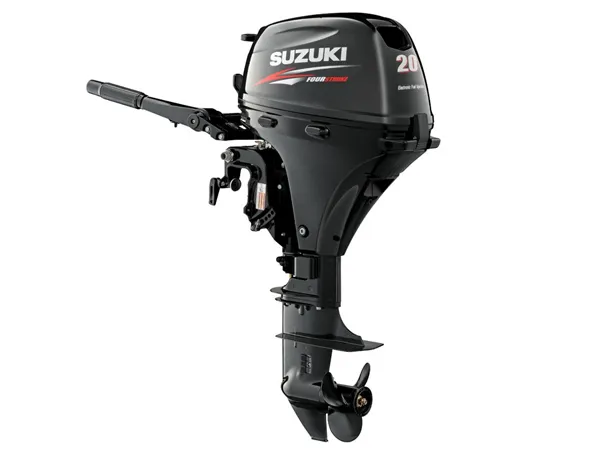

Suzuki 20 HP DF20AES2 Outboard Motor
Combining the convenience of push-button start with Suzuki’s potent yet serene marine engineering, the Suzuki 20 HP DF20AES2 Outboard Motor emerges as the pragmatic and ideal choice for larger skiffs, jon boats, and inflatable vessels. Sporting a 15-inch shaft and tiller steering, this outboard stands out as the quietest engine in its class. It comes standard with a 3.1-gallon fuel tank and fuel line, aluminum prop, tool kit, and Suzuki’s factory warranty.
Key Features
- Electronic Fuel Injection (EFI): Ensures efficient fuel delivery and reliable starts.
- Sleek, Compact, Lightweight Design: The lightest outboard in the 20hp 4-stroke class.
- Saltwater Rated: Ideal for saltwater use with multi-layer corrosion protection.
- Fresh Water Flushing Port: Easy maintenance and longevity.
- Electric Start + 12V Alternator System: Quick and dependable starting.
- Quiet Through-the-Prop Exhaust: The quietest engine in its class.
- Shallow Water Drive: Enhanced versatility for various water conditions.
- Suzuki’s Lean Burn Control System: Up to 17% more fuel efficient compared to some competitors.
For more details on similar outboard motors, check out our Suzuki Outboard Motors category.
Specifications
Feature | Details |
---|---|
Model | DF20AES2 |
Horsepower | 20hp |
Shaft Length | 15″ (Short) |
Steering | Tiller |
Starting | Electric |
Trim & Tilt | Manual |
Fuel Delivery | EFI |
Fuel Tank | External |
Cylinder(s) | 2 |
Displacement | 327 cc (20.0 cubic inches) |
Bore and Stroke | 60.4 x 57 mm (2.38 x 2.24 inches) |
Full Throttle RPM Range | 5300-6300 RPM |
Ignition System | Digital CDI |
Induction Scavenging | SOHC |
Valves per Cylinder | 2 |
Fuel Type | Unleaded Gasoline (87 octane) |
Oil Capacity | 33.8 fl oz. (1000 mL) |
Lubrication | Wet Sump; Trochoid Type Cam-Driven Oil Pump |
Alternator | 12V 145W 10A |
Cooling System | Water-Cooled |
Saltwater Rated | YES |
Gear Ratio | 2.08:1 |
Gear Shift | Forward-Neutral-Reverse (front-mounted lever) |
Propeller | 3-Blade Aluminum 9.25″ Dia x 10″ Pitch |
Internal Battery | No |
For more options, see our listings for the 2018 Suzuki 40 HP DF40A Outboard Motor and 2018 Suzuki Marine 20 HP DF20AL EFI Outboard Motor.
What’s in the Box?
- 3.1 gal. Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
- Suzuki 3-Year Warranty
For inquiries or further assistance, please visit our Contact Us page.
